What is VLAN?

A VLAN, or Virtual Local Area Network, is a virtualized subdivision of a network, it is like creating distinct, smaller networks within a larger network, without the need for additional hardware.  It allows multiple broadcast domains to coexist within a single physical network infrastructure. In addition, it enables networks to be segmented based on organizational needs—such as separating the networks for different departments, functions, project teams, or types of devices. Each VLAN is identified by a unique VLAN ID, enabling data packets to be tagged accordingly so network devices can direct traffic to the correct VLAN.

In a traditional LAN, all devices share the same broadcast domain, which means any broadcast packet sent by a device is received by all other devices in the LAN. However, in a VLAN setup, broadcast traffic is only sent to devices within the same VLAN, even if they are spread across multiple switches or locations.

Why is it important?

VLANs provide a powerful toolset for customizing network behavior to align with business requirements and security policies. Benefits of VLANS in network designs include;

Security: A VLAN could be created specifically for devices that handle specific data, such as finances, marketing, or other sensitive information. By segregating devices into separate VLANs based on their role, sensitivity of the data they handle, or user group, it prevents unauthorized access and minimizes the potential impact of breaches, thus enhancing network security.

Efficiency: In a large network, broadcast traffic can consume a considerable amount of bandwidth, potentially leading to network congestion. Since a VLAN limits broadcast traffic to devices within the same VLAN, it reduces the overall network load.

Management: VLANS allows for better control over the network and simplifies tasks such as adding or moving devices. It simplifies the management of network resources by allowing networks to be segmented logically rather than physically. Also, changes to network groupings can be made easily through software configurations without the need to physically rewire devices or move equipment

Scalability and Flexibility: VLANs allow networks to be more easily scaled and adapted to changing needs. As an organization grows, new VLANs can be created to accommodate new departments or user groups without the need for additional physical devices.

Cost-effectiveness: By maximizing the use of existing hardware and reducing the need for additional physical infrastructure for network segmentation, VLANs can offer significant cost savings.

Key Concepts of VLAN

Broadcast Domains: A broadcast domain consists of all devices on a network segment that can reach each other with broadcast frames. In a traditional, unsegmented network, broadcasts sent by any device are received by all devices within the same LAN, which can lead to unnecessary data traffic and potential security issues.

Segmentation with VLANs: VLANs segment a single physical network into multiple logical networks. Each VLAN creates a separate broadcast domain. Broadcasts sent by a device in one VLAN are only received by devices within the same VLAN. This segmentation reduces broadcast traffic, enhances network performance, and improves security by isolating sensitive data within specific VLANs.

VLAN Tagging: VLAN tagging involves inserting a VLAN ID into the frame header to identify which VLAN the frame belongs to. This process enables switches and routers to direct frames to the appropriate VLAN, ensuring that data is segregated and routed correctly within a network.

IEEE 802.1Q Standard: The IEEE 802.1Q standard is the most common method for implementing VLAN tagging. It specifies how frames are tagged for VLANs and how those tags are interpreted by network devices. The standard allows for traffic from multiple VLANs to be carried over a single physical link, facilitating VLAN implementation across diverse network devices

Tagged Ports: Tagged ports are configured to receive and send frames that contain VLAN tags. These ports are typically used on trunk links that connect switches, allowing the ports to handle traffic from multiple VLANs simultaneously. Each frame’s VLAN tag tells the switch which VLAN the frame belongs to.

Untagged Ports: Untagged ports are configured to operate within a specific VLAN and do not expect incoming frames to carry VLAN tags. Frames sent from an untagged port are associated with the port’s configured VLAN. This setup is commonly used for access ports that connect to end devices (like computers or printers) that are not VLAN-aware.

Trunk Links: Trunk links are network connections between switches (or routers) that carry traffic from multiple VLANs. These links are essential for allowing VLANs to span across multiple network switches, enabling devices in the same VLAN but connected to different switches to communicate as if they were on the same local network.

Traffic Handling on Trunk Links: On a trunk link, frames are tagged with their respective VLAN IDs as they enter the link (unless the frame originates from an untagged port configured for a specific VLAN). The receiving switch then uses these tags to determine which VLAN the frame belongs to and forwards the frame accordingly. Trunk links use tagged ports to manage this process, ensuring that traffic is segregated and delivered to the correct VLAN

How is VLAN implemented?

Here’s a quick overview of how to implement VLANs:

Plan Your VLANs

Identify Segmentation Needs: Determine how to segment your network. Common criteria include departmental divisions, project teams, application types like VoIP, data, video, or security levels.

Assign VLAN IDs: Based on your segmentation plan, assign a unique VLAN ID (a number between 1 and 4094) to each VLAN.

Map Devices to VLANs: Decide which devices (computers, printers, servers, etc.) belong to which VLANs.

Configure Switches

Access the Switch Configuration Interface: This could be a command-line interface (CLI), a web-based GUI, or a network management software.

Create VLANs on Switches: For each VLAN, you need to enter configuration mode and create the VLAN using its ID. The specific commands depend on the switch’s operating system (e.g., Cisco IOS, Juniper Junos, etc.).

Assign Ports to VLANs: Designate switch ports as either access or trunk ports. Access ports connect to devices and belong to a single VLAN. Trunk ports connect to other switches and can carry traffic from multiple VLANs. Assign the ports to their respective VLANs.

Configure Trunk Ports: To allow VLANs to span across multiple switches, configure trunk ports to carry multiple VLANs. Specify which VLANs the trunk can carry and the encapsulation protocol (IEEE 802.1Q).

Configure Inter-VLAN Routing (if necessary)

Test and Verify Configuration

Document Your Configuration

Maintain detailed documentation of your VLAN configurations, including VLAN IDs, purposes, assigned ports, and inter-VLAN routing setup. This documentation is vital for troubleshooting, future expansion, and maintenance.

That’s it!

Check out these best-selling routers via our Amazon affiliate links!

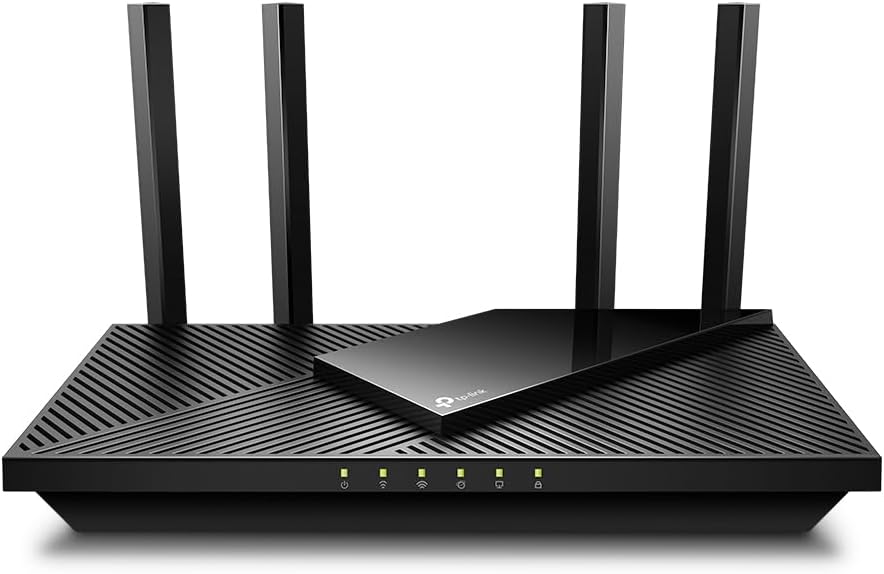

TP-Link AX1800 WiFi 6 Router (Archer AX21) – Dual Band Wireless Internet Router, Gigabit Router, Easy Mesh, Works with Alexa – A Certified for Humans Device

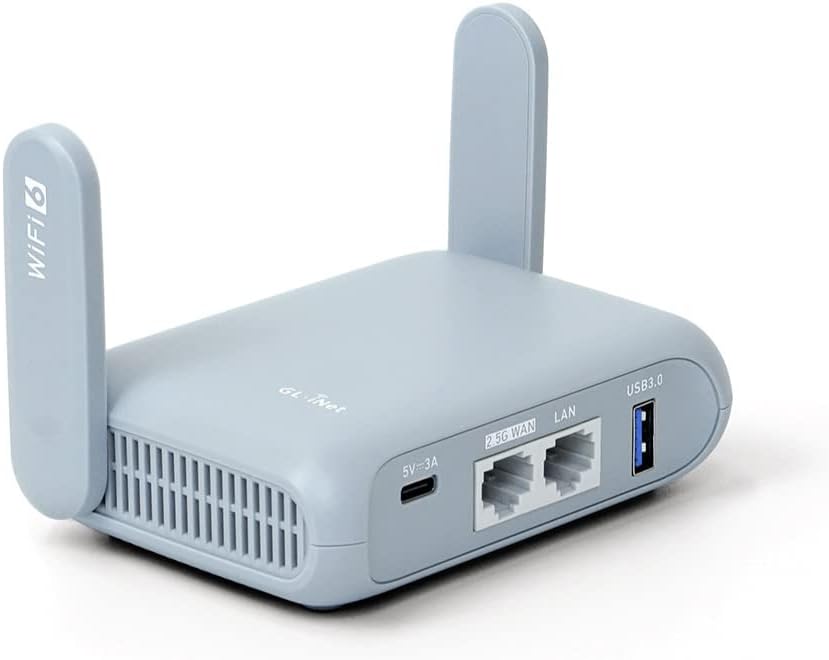

GL.iNet GL-MT3000 (Beryl AX) Pocket-Sized Wi-Fi 6 Wireless Travel Gigabit Router | WiFi Router | OpenVPN, Wireguard, Connect to Public & Hotel Wi-Fi login Page, RV
